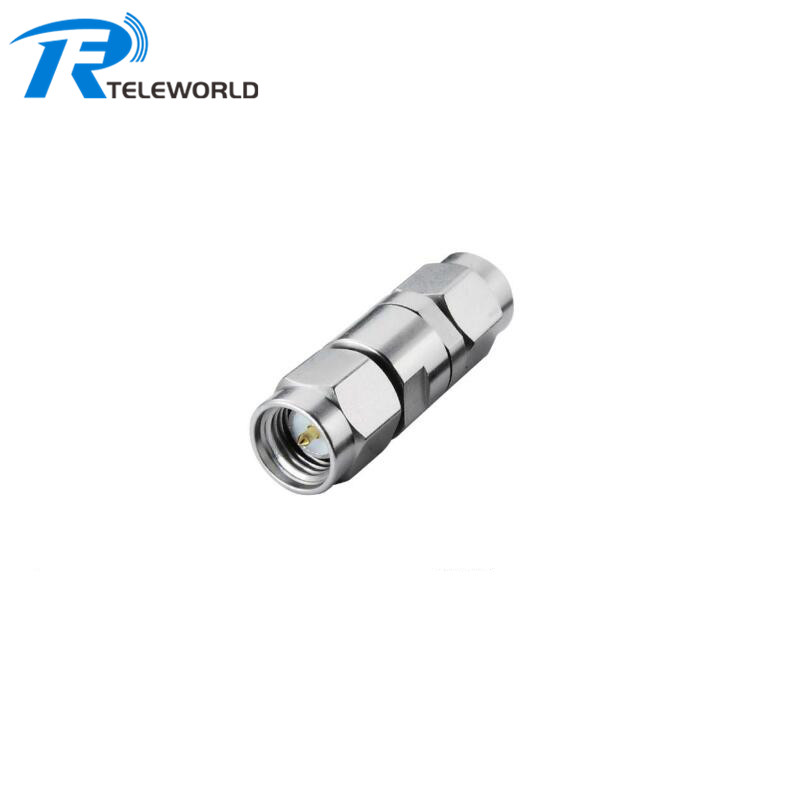

Factory service 3.5mm adapter 26.5GHz 50ohm

3.5mm male to 3.5mm female

3.5mm male to 3.5mm male

3.5mm female to 3.5mm female

Adapter3.5mm

3.5 Precision coaxial connector for microwave applications.the maximum frequency is

26.5GHz.

•Design in accordance with: IEEE Std 287 TM -2007

Standard materials and finish

•Center conductor:beryllium copper，gold plated

•Insulator:PEI

•Outer conductor:Stainless steel,Passivated

Electrical Characteristics

•Characteristic Impedance:50Ω

•Frequency range:DC-26.5GHz

•VSWR: 1.15:1 max

•Insulation resistance: 5000MΩmin

•Test voltage:1000V

Mechanical

•Coupling torque:1.69N• max

•Mating cycles: 1000cycles min

Environmental

•emperature range: -55℃～+155℃
